WH10620R

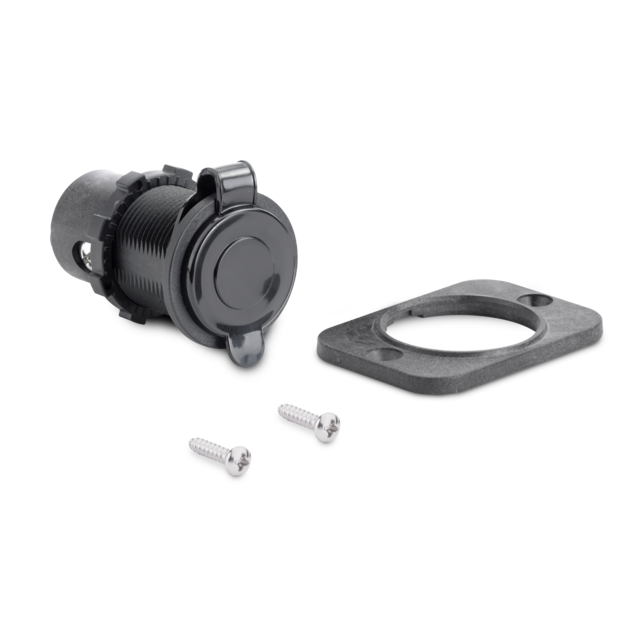

Sierra’s Trolling Motor Receptacle offers easy installation, water-tight sealing cap and O-ring seals, and corrosion resistant electrical components perfect for harsh marine environments. It accepts 16 to 6 AWG wire with no additional adapter needed, making it a cost effective option. Replaces Marinco 12VBR.
For 2 or 3-wire configurations of: 12V, 24V, 12/24V, 24/36V, or 36V systems
Watertight sealing cap
Corrosion-resistant, plated-brass electrical components
Standard 1 1/8" diameter mounting hole for easy installation
Mounting plate and locking ring for front and rear access installation
Max amp rating of 62A @ 36VDC when used with Sierra WH10620P plug
Accepts 16 to 6 AWG wire without the need of an expensive adapter
SKU number
9620009031
Model
Power Systems
Model on label
TBD
Product Description
Trolling Motor Receptacle
Publication Legacy Item Number
WH10620R
Product Category
Shore Power
EAN-13
0808282388171
Dimensions parcel depth, ["]
2.30
Dimensions parcel height, ["]
3.10
Dimensions parcel width, ["]
5
